Packaging line efficiency and sustainability

Inefficiencies in a packaging line usually go hand in hand with bottlenecks, waste and increased energy use, and of course, companies are keen to address these issues. Dan Rossek, Omron’s UK marketing manager, explains that the first remedial step is to explore where exactly the problem lies, and outlines how smart automation can help.

“Some of the underlying issues that packaging companies face, and that are hard to pin down, are unplanned downtime, long changeover times and machine bottlenecks. Smart automation, or at least support data-driven analysis, can play an important role to determine what the root cause of inefficiency is. Once it has been identified correctly, mitigation in the form of solutions like preventative maintenance, flexible part handling or robotic automation becomes possible.”

In line with this, AI analysis and smart automation have been successfully used to support packaging sustainability, for example when using materials such as compostable or recycled materials or bioplastics, which continue to be more in demand but come with their own set of challenges.

When it comes to heat sealing or thermoforming, many of the more ecologically friendly packaging media are not as robust as traditional materials and legacy packaging machinery cannot be easily converted to use them.

For example, ‘traditional’ teabags often contain plastic to strengthen the bag, and to make the forming and sealing process more reliable, as Mr Rossek points out.

“As part of their sustainability drive, one of our customers, a teabag manufacturer, decided to remove the plastic from their teabags. They then faced the challenge of a high number of rejects, because the material wasn’t sealing correctly, as it is more sensitive to temperature fluctuations. To address this, we measured the thickness of the media, using high-speed, high precision gauging systems, and monitored the temperature in the sealing jaws, recording everything over three months. We then analysed any changes and used an AI algorithm to calculate the optimum sealing temperature and optimum web tension to improve the process.”

The proliferation of digital twins

Mike Loughran, CTO for the UK and Ireland at Rockwell Automation, also highlights the importance of agility and flexibility when it comes to using rapidly changing packaging material types that are being developed to reduce waste and increase recycling and sustainability.

“By adopting a smart automation approach, your machine is not just ready now but for future developments. This flexibility needs to be built in at the design stage.”

To build an agile, smart system, digital thread is key, starting at the design stage.

“Digital thread, i.e. creating a digital twin, allows us to test all aspects of a machine prior to the building – this can help speed up development, enable multiple test machines to be built and trialled prior to the actual build commencing, it can be designed and tested to check performance, output and ensure it is the most efficient it can be. The machine can be virtually tested for many scenarios to provide performance guarantees.”

Commissioning the digital twin virtually then helps cut down on time on site, travel required and provides the foundation for remote support, which in turn can reduce downtime.

“The digital twin also provides the basis for trialling new materials or products before applying so you can test before running and is passed on from design to operations for the machine life cycle,” adds Mr Loughran.

FMCG mass personalization

Traditionally, product flexibility is often thought of in terms of short production batches and speeding up changeovers with automation, but smart automation can take this a step further.

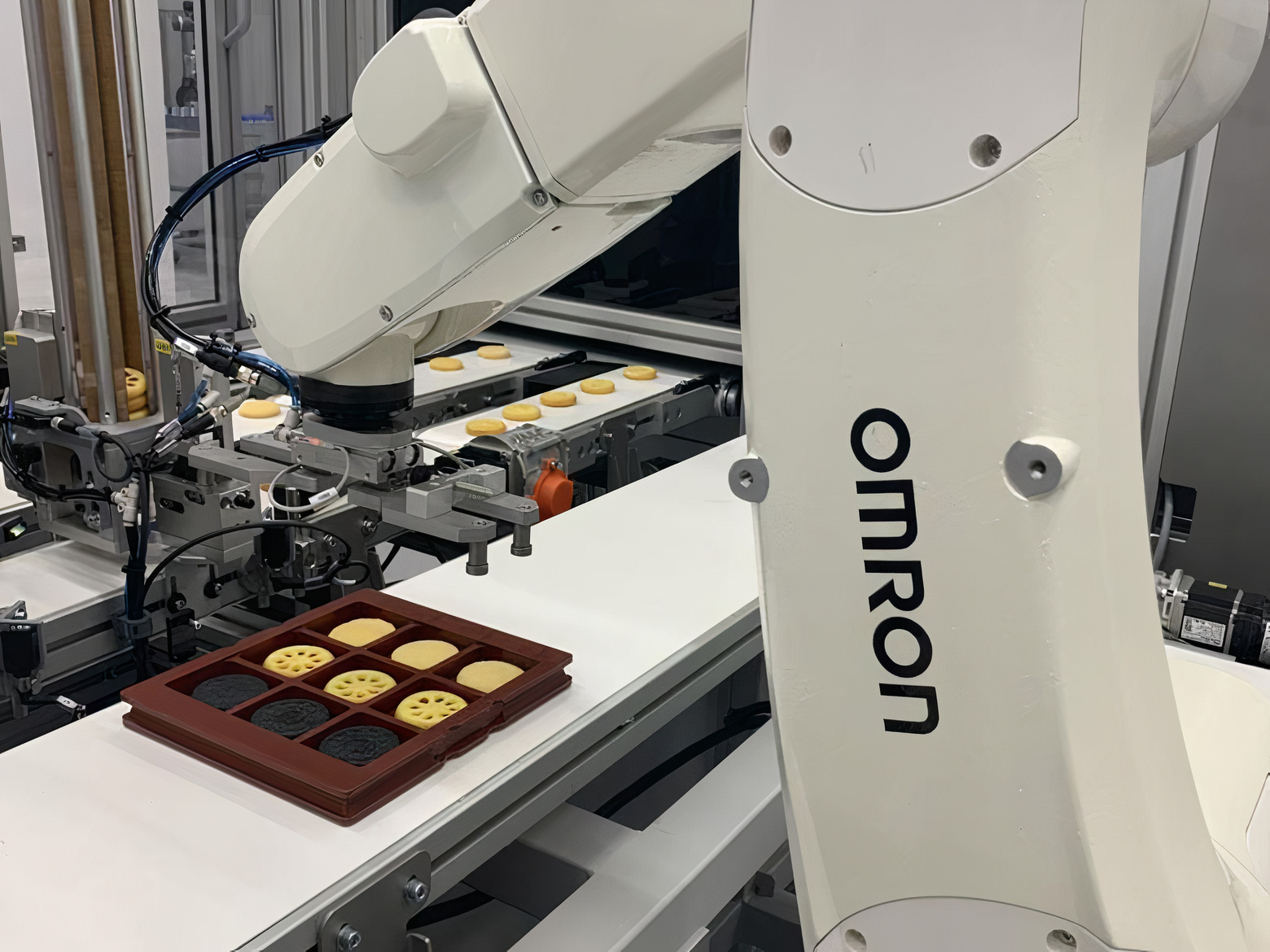

OMRON recently launched what is described as the ‘world’s first automation architecture for personalization at scale. The Robotic Integrated Controller (RIC) is designed to make made-to-order mass production ‘commercially viable for FMCG businesses.

The control platform is able to coordinate personalized FMCG production. What could previously only be done manually and on a very limited scale can now be executed via a fully automated workflow.

“This enables the serial production of unique products. For example, it’s frustrating to buy a biscuit selection box at Christmas, but always have some biscuits left over because nobody likes them. As a consumer, I’d like to decide, how many and what flavour biscuits I want in the selection box,” says Mr Rossek.

“The essence of this concept is to empower consumers to self-select the combination of products they want and in the pack formats and sizes, they want. There is potential for seasonal and special occasion gifting products, such as nail varnish gift sets in colours selected at the point of order, self-picked cheeseboards or gin advent calendars in which the bottle behind each door has been individually chosen for the recipient. Up until now, such products have been niche and expensive because they have had to be manually assembled. The RIC makes automated production of these bespoke selections more feasible and cost-effective.”
